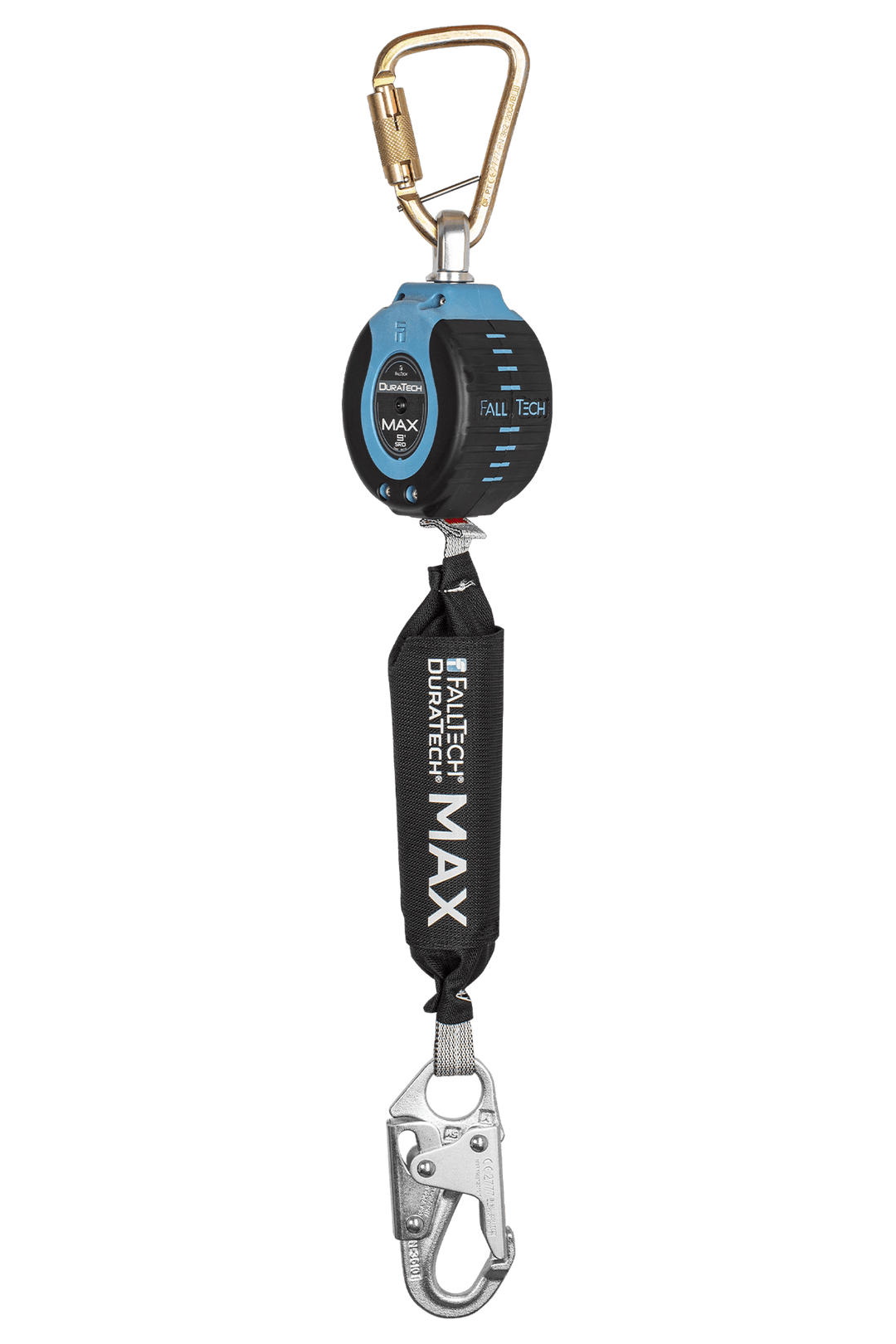

FallTech 9' DuraTech® MAX Personal SRL with Steel Snap Hook and Steel Dorsal Connecting Carabiner

FEATURES

• Internal inertial brakes plus the external energy absorber deliver max weight capacity and max below D-ring anchorage distance
• Dyneema® web lifeline resists abrasion while providing trusted strength
• Overmolded glass-filled nylon housing contributes unmatched impact resistance
• Energy absorber features ViewPack® cover with inspection window and WrapPack label protection
• Integrated aluminum alloy swivel-eye helps to prevent lifeline twisting for smooth operation
• Features alloy steel snap hook anchorage connector; user-supplied dorsal connector required
• Includes alloy steel dorsal connecting carabiner
• May be anchored up to 5' below the dorsal D-ring for users weighing up to 425 lb max. with OSHA-only compliance
• Complies with ANSI Z359.14-2014

MATERIAL SPECIFICATIONS

• Webbing: Dyneema®/Polyester blend; 4,500 lb min.
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength
• Dorsal Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,000 lb min.
• ANSI SRL Class: Class B
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 54"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 425 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Spec Sheet

COMPLIANT WITH:

1. ANSI Z359.14-2014
2. OSHA 1926.502 and 1910.66
