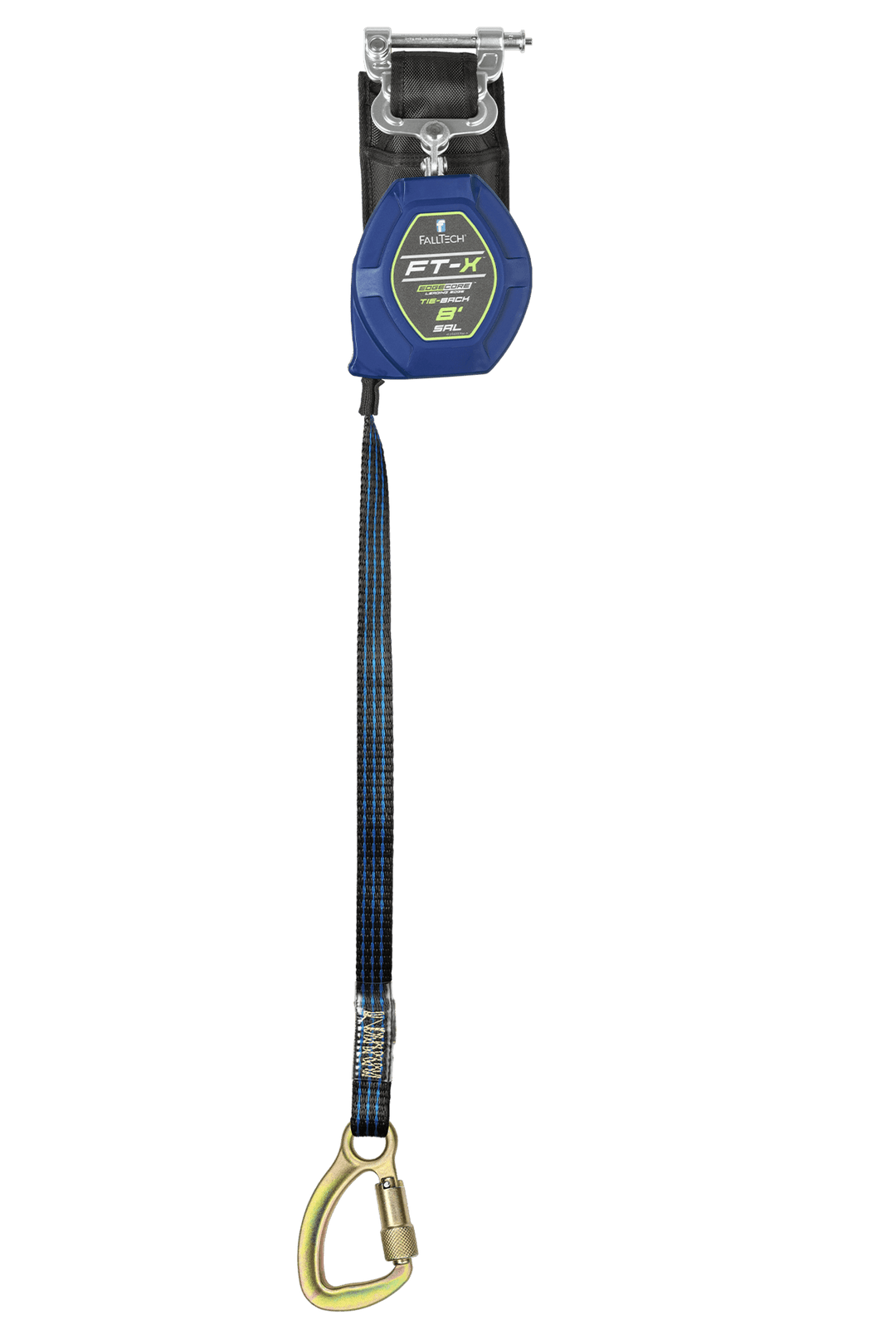

FallTech 8' FT-X™ EdgeCore™ Tie-Back Class 2 Leading Edge Personal SRL-P, Single-Leg with Steel 5K Carabiner

FEATURES

• EdgeCore™ lifeline is made from Kevlar® cables and a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cable used in most Class 2 SRL-P’s
• Compact design elevates the SRDs to align optimally with worker motion, increasing both comfort and productivity
• Features comprehensive fall clearance charts and tables inside the energy absorber cover
• Internal mechanism design minimizes unintentional lockups to keep you moving freely and productively
• Suitable for below D-ring tie-off up to five feet and leading edge exposures and hazards, including steel and precast concrete
• Rated for workers weighing up to 420 pounds, including clothes, tools, gear, etc.
• Features steel carabiner leg-end connector with 5,000 lb rated gate for tie-back applications
• Complies with ANSI Z359.14-2021 Class 2 SRL-P. Learn more and download White Paper

MATERIAL SPECIFICATIONS

• Lifeline: EdgeCore™; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Anchorage Connector: Plated alloy steel; 5,000 lb min. static strength with 5,000 lb gate strength
• Dorsal Connector: Aluminum alloy; 3,600 lb min.

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb min.
• ANSI SRL Class: Class 2 SRL-P
• Avg. Arrest Force: 1,350 lb max.
• Max. Arrest Force: 1,800 lb
• Max. Arrest Distance: 42"
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 420 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Sell Sheet/Brochure
• FT-X™ EdgeCore™ Tie-Back Flyer
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
2. CSA Z259.2.2-2017
3. ANSI Z359.14-2021
