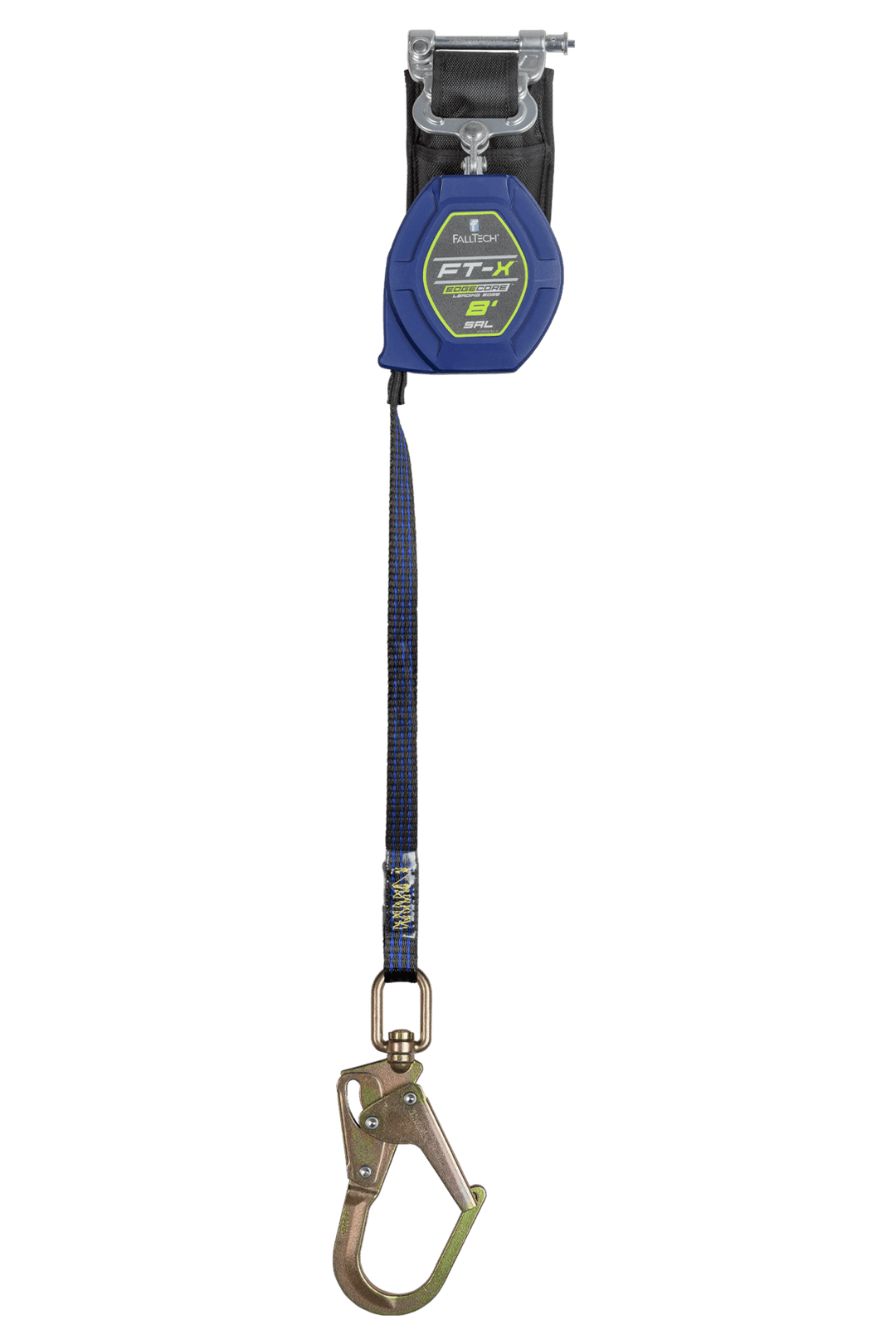

FallTech 8' FT-X™ EdgeCore™ Class 2 Leading Edge Personal SRL-P, Single-Leg with Steel Swivel Mini Rebar Hook

FEATURES

• EdgeCore™ lifeline: Made from Kevlar® cables with a UV-resistant composite jacket, weighing 40% less than 3/16” galvanized cables typically used in Class 2 SRL-Ps.
• Compact design: Aligns SRDs optimally with worker motion for increased comfort and productivity.
• Fall clearance charts: Includes comprehensive charts and tables inside the energy absorber cover for easy reference.
• Internal mechanism: Minimizes unintentional lockups, allowing smooth and productive movement.
• Below D-ring tie-off: Suitable for tie-off up to five feet below the D-ring and leading edge exposures on steel and precast concrete.
• Weight capacity: Rated for workers weighing up to 420 pounds, including clothes, tools, and gear.
• Complies with ANSI Z359.14-2021 Class 2 SRL-P standards. Learn more and download the White Paper.

MATERIAL SPECIFICATIONS

• Lifeline: EdgeCore™; 5,000 lb minimum static strength.
• Energy Absorber: Polyester tear-away.
• Anchorage Connector: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength.
• Dorsal Connector: Aluminum alloy; 3,600 lb minimum static strength.

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb minimum.
• ANSI SRL Class/Type: Class 2 SRL-P.
• Average Arrest Force: 1,350 lb maximum.
• Maximum Arrest Force: 1,800 lb.
• Maximum Arrest Distance: 42 inches.
• ANSI User Capacity: 130 to 310 lb maximum.
• OSHA User Capacity: 130 to 420 lb maximum.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Sell Sheet/Brochure
• FT-X™ EdgeCore™ Flyer
• Spec Sheet

COMPLIANT WITH

• OSHA 1926.502 and 1910.66
• CSA Z259.2.2-2017
• ANSI Z359.14-2021
