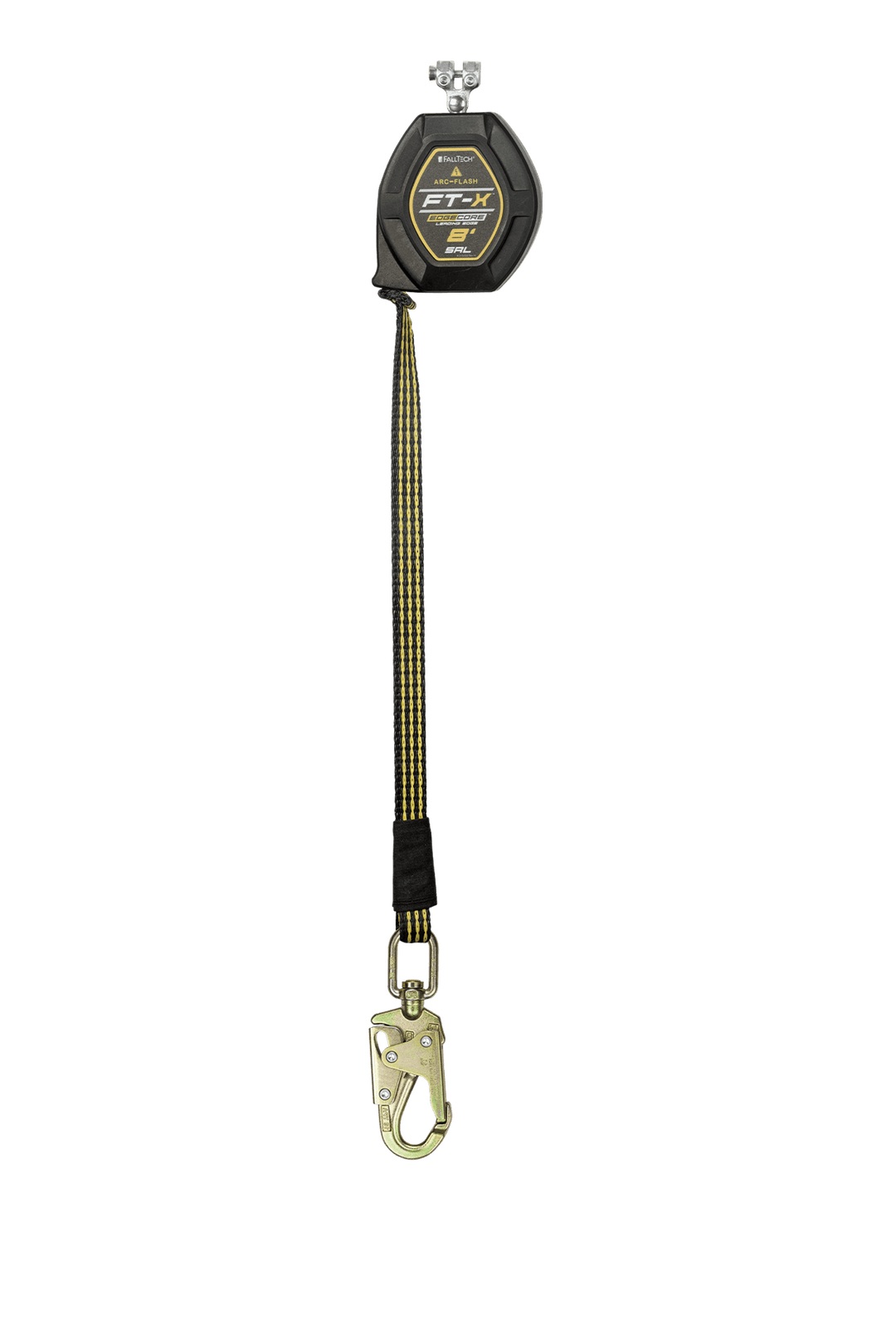

FallTech 8' FT-X™ EdgeCore™ Arc Flash Class 2 Leading Edge Personal SRL-P Replacement Leg with Steel Swivel Snap Hook and SpeedLink™

FEATURES

• This item is a replacement-leg unit for a twin-leg SRL and cannot be used alone
• Replacement retractable part number for 84008TP2
• Features SpeedLink™ field replaceability of damaged retractable units, lowering overall cost of ownership and reducing equipment downtime
• Complies with ANSI Z359.14-2021 Class 2 SRL-P
• Meets ASTM F887 Standards

MATERIAL SPECIFICATIONS

• Lifeline: EdgeCore™ Arc Flash (Kevlar®); 5,000 lb minimum static strength
• Anchorage Connector: Plated alloy steel; 5,000 lb minimum static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 3,600 lb minimum
• ANSI SRL Class: Class 2 SRL-P
• Average Arrest Force: 1,350 lb maximum
• Maximum Arrest Force: 1,800 lb
• Maximum Arrest Distance: 42 inches
• ANSI User Capacity: 130 to 310 lb maximum
• OSHA User Capacity: 130 to 420 lb maximum

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Sell Sheet/Brochure
• FT-X™ EdgeCore™ Arc Flash Flyer
• Spec Sheet

COMPLIANT WITH

• ASTM F887-20
• OSHA 1926.502 and 1910.66
• ANSI Z359.14-2021
