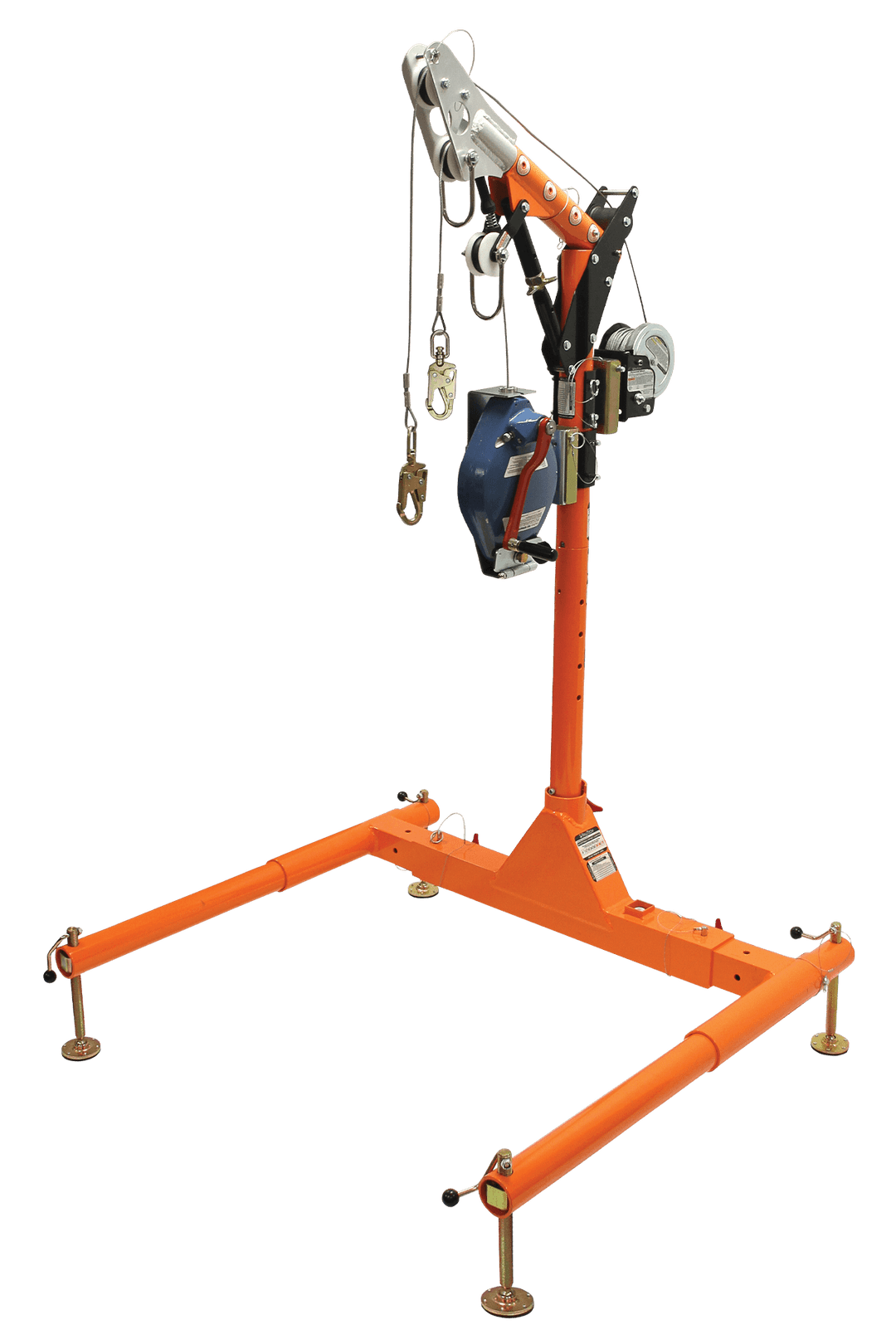

FallTech 5pc Confined Space Davit System 12" to 29" w/60' Winch + 60' SRL-R

FEATURES

• Davit arm adjusts from 12" to 29" offset reach to keep lifelines centered over access locations
• Base width adjusts from 38" to 65" and fits a wide range of openings.
• 5pc system features 33" lower mast extension and 2 device receiver brackets
• Includes 60' galvanized cable SRL-R and Personnel Winch
• Offset davit arm features two pulleys and secondary 5,000 lb anchor point
• 3pc base includes integral bullseye level and tool-free height adjustment
• Lightweight powder coated aluminum combined with alloy steel for longer life and durability
• Davit System meets OSHA 1926.502 and 1910.66 regulations
• SRL-R complies with ANSI Z359.14-2014, Winch complies with ANSI Z359.4-2013

MATERIAL SPECIFICATIONS

• Davit System: Powder coated 6061 aluminum and plated steel

PERFORMANCE SPECIFICATIONS

• Rescue Static Strength: 5,000 lb min.
• Entry/Egress Static Strength: 1,800 lb min.
• Rescue User Capacity: 2 users, 310 lb max. for each person
• Entry/Egress Capacity: 1 user, 310 lb max.

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Sell Sheet/Brochure
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502 and 1910.66
