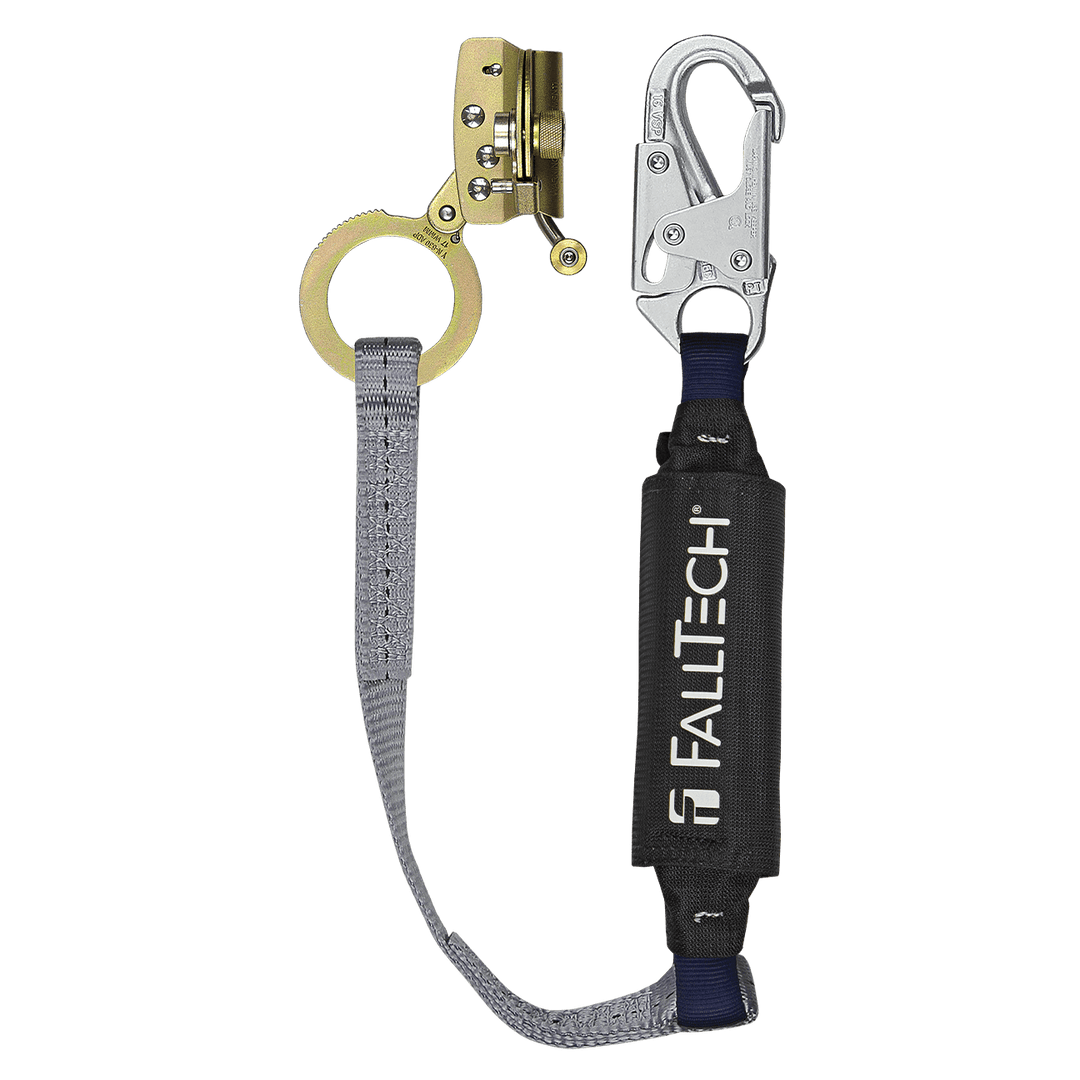

FallTech 3' ViewPack SAL with Trailing Hinged Fall Arrester ANSI Z359.15

FEATURES

• Anti-panic function provides the safest solution available for vertical rope attachment
• Hinged design allows user installation at any point on the lifeline.
• Trailing mobility follows ascending and descending user with minimal effort
• Energy absorber features patented ViewPack® cover with inspection window
• For use with 5/8" diameter synthetic rope lifelines
• Includes alloy steel fall arrester for lifeline connection and snap hook for harness attachment
• Complies with ANSI Z359.15-2014

MATERIAL SPECIFICATIONS

• Webbing: Polyester; 5,000 lb min. static strength
• Energy Absorber: Polyester tear-away
• Fall Arrester: 5/8" Fall Arrester/Grab; Plated alloy steel; 5.000 lb min.
• Connector: Plated alloy steel; 5,000 lb min. static strength with 3,600 lb gate strength

PERFORMANCE SPECIFICATIONS

• Static Strength: 1,800 lb min.
• ANSI Lanyard Class: 6' free fall
• Max. Arrest Distance: 11'
• Avg. Arrest Force: 900 lb
• Max. Arrest Force: 1,800 lb
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

DOWNLOADS

• Instruction Manual (ANSI)
• Instruction Manual (CSA)
• Declaration of Conformity (ANSI)
• Declaration of Conformity (CSA)
• Sell Sheet/Brochure
• Spec Sheet

COMPLIANT WITH:

1. CSA Z259.2.5-2017
2. OSHA 1926.502 and 1910.66
3. ANSI Z359.15-2014
