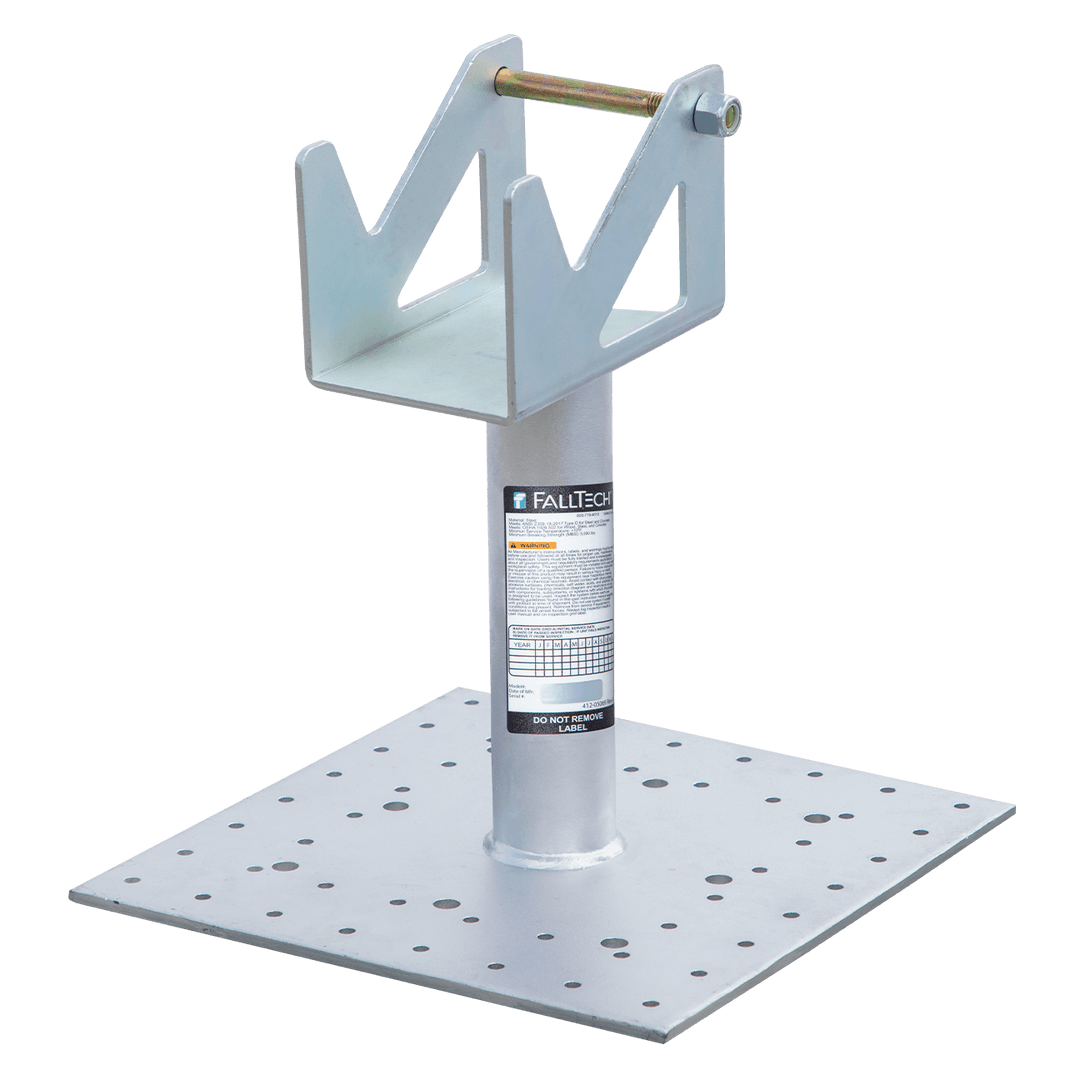

FallTech 12" Post Anchor, SRL Cradle, Wood/Concrete/Steel

FEATURES

• Features 360° rotating SRL cradle for expanded working range and freedom of movement
• Welded galvanized steel post and plate construction.
• 16" x 16" x 1/2" base plate provides durable permanent installation to wood, concrete and steel structures
• Available in 12" and 18" post heights to elevate user's connections above the walking/working surface
• Plated carbon steel construction fits most SRLs
• Requires user-supplied fasteners for installation
• Complies with ANSI Z359.18-2017

MATERIAL SPECIFICATIONS

• Post Anchor: Galvanized carbon steel
• SRL Cradle: Plated carbon steel

PERFORMANCE SPECIFICATIONS

• Static Strength: 5,000 lb min.
• ANSI User Capacity: 130 to 310 lb max.
• OSHA User Capacity: 130 to 310 lb max.

AVAILABLE SIZES

• 78012WCSSC - 12"

DOWNLOADS

• Instruction Manual
• Declaration of Conformity
• Sell Sheet/Brochure
• Spec Sheet

COMPLIANT WITH:

1. OSHA 1926.502
2. ANSI Z359.18-2017
