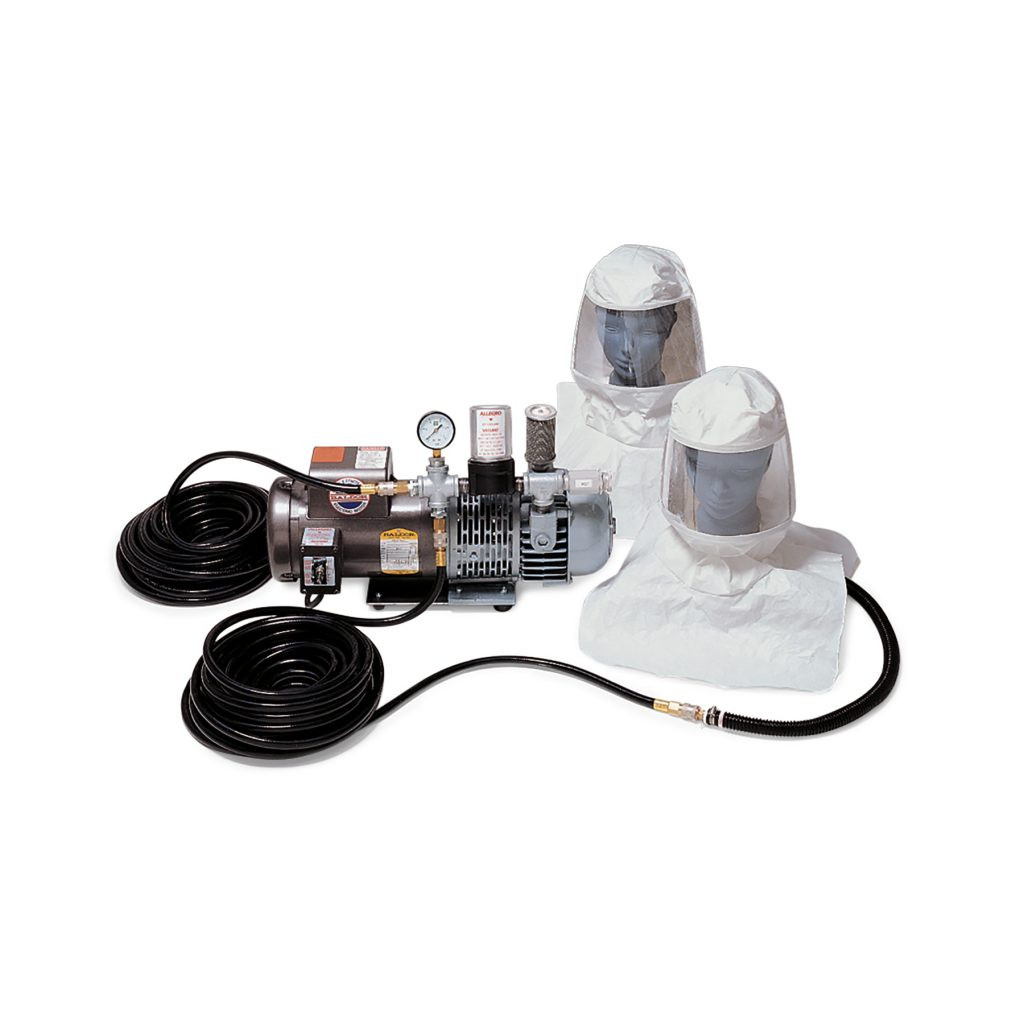

Allegro Two‐Worker Tyvek Hood System with 50' Hose | 9220-02

Allegro Two‐Worker Tyvek Hood System, 50' Airline Hoses. In areas such as painting or asbestos abatement, where levels of contamination are low, these complete SAR systems offer a portable air source for one or two workers. They include disposable, lightweight, loose fitting DuPont Tyvek hoods, a ¾ hp or 1 ½ hp breathing air pump and 50 or 100 feet of breathing air hose.

PUMP:

• Type: Oil-less, rotary vane
• Vanes: Carbon construction
• Inlet Filter: 40.0 Micron bronze/steel (¼ hp)
  • 50 Micron felt material with metal grid inlet filter housing
• Exhaust Filter: 0.3 Micron HEPA
• Pressure Gauge: 1½” (3.8 cm) face, steel housing (0-15 psi) (0-1.03 bar)
• Working Pressure: 2-12 psi (0.14-0.83 bar) (15 psi max) (1.03 bar max)
• Performance:
  • 0-5 CFM (0-8.5 m3/hr) (¼ hp)
  • 0-10 CFM (0-16.99 m3/hr) (¾ hp)
  • 0-20 CFM (0-33.98 m3/hr) (1½ hp)

MOTOR:

• Type: ¾ HP, or 1½ HP UL Listed
• Volts: 115V/230V AC Single Phase
• Power Required: 8.3 A (3/4 HP), 16 A (1½ HP)

HOOD:

• Poly-coated DuPont Tyvek®
• Splash resistant hood and bib
• Seams surged to seal in the air flow.
• Generous size is ideal for workers with beards or goggles

LENS:

• Clear 15mil co-polyester (PETG)
• Panoramic view, 6”x12” (15.2cm x 30.4cm)
• Distortion-free

LENS PEEL OFFS: (P/N: 9910-25) (optional)

• Polyester, clear film with adhesive backing
• 5.25” X 11.25” (13.3cm x 28.57cm) (0.007” (.017cm) thick)

SUSPENSION:

• Disposable one-piece assembly
• Absorbent foam headband
• Adjustable hook and loop closure head harness secures hood in place

DOWN TUBE:

• Located in the back of the hood allows it to be out of the way
• Corrugated flexible and lightweight material for greater comfort and less fatigue
• OBAC quick-connect plug with wide diameter and minimal air restriction

BELT ASSEMBLY:

• Low profile nylon adjustable waist belt
• Plastic clip to restrain airline hose from pulling on the facepiece
