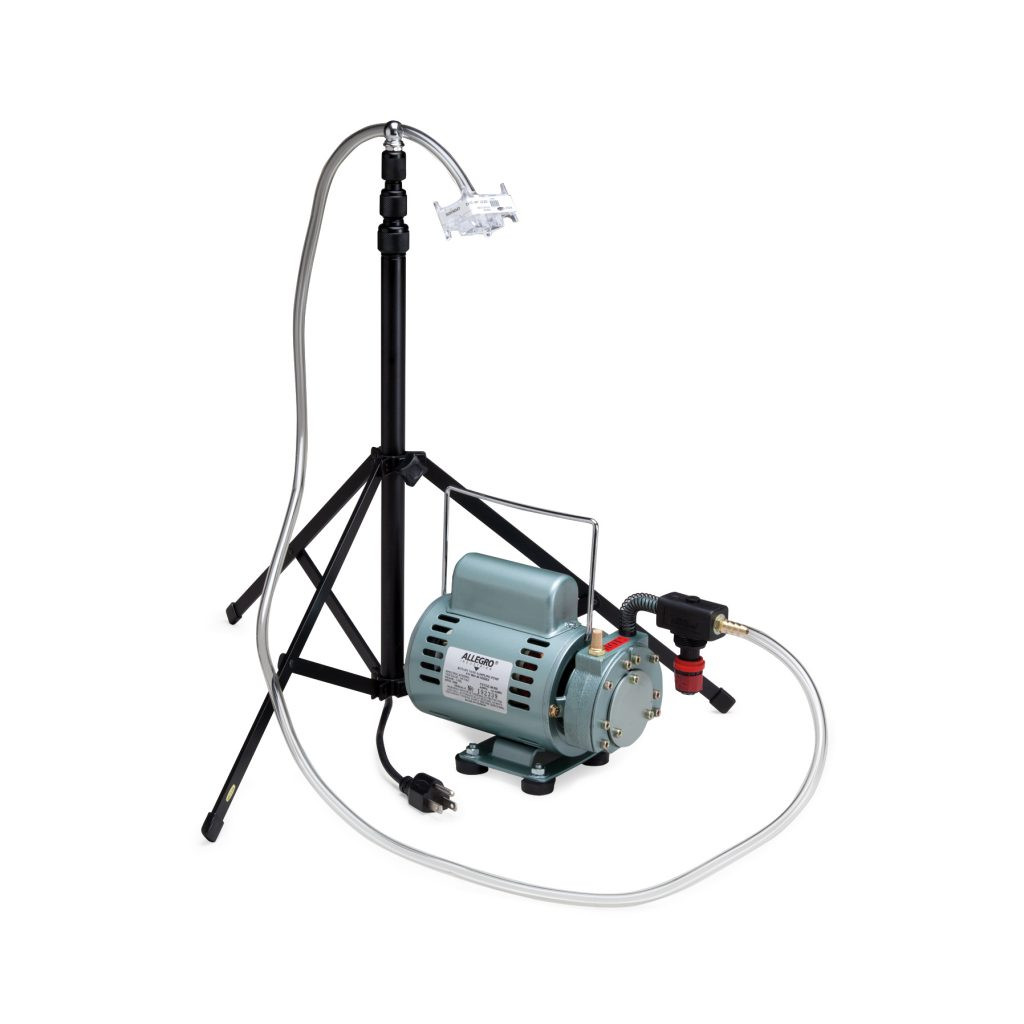

Allegro T-101 Jarless Sampling Pump without Stand | 9801-88

This low-maintenance pump meets all OSHA and AHERA standards for air sampling. It’s lightweight and easy to use. The rotary, oil-less, vane pump has one moving part for pulse- free, continuous draw and low maintenance. It has an adjustable regulator with a lock ring.

CONSTRUCTION:

• Rigid metal base & housing, powder coated gray
• Adjustable locking pressure regulator
• Rubber feet
• Steel handle
• Built-in on/off switch

PUMP:

• Type: Oil-less, rotary vane
• Vanes: Carbon construction (4 ea./ replaceable)
• Filter, Inlet: Foam (internal)
• Exhaust Filter: Foam (internal)
• Performance: 0-30 LPM (adjusted via pressure regulator)

MOTOR:

• Specs: 1/10 HP 115 VAC, Single Phase, 60 Hz, 3450 RPM
• Cord: 6.5’ AWG 16/3 SJOOW
• Switch: ON/OFF rocker (integrated on motor housing)
• Plug: Integrated NEMA 5-15

OPTIONAL:

• Flow Meter: PN 9804-03 Clear acrylic, Teflon® float, graduations: 0.0 - 20.0 LPM (flow meter is required to set flow rate before sampling)
• Tripod Stand: PN 9804-08 anodized aluminum, adjustable with three extending rods

DIMENSIONS:

Length	Width	Height	Weight
7” (17.7 cm)	3.75” (9.5 cm)	6” (15.2 cm)	10 lbs. (4.5 kg)
