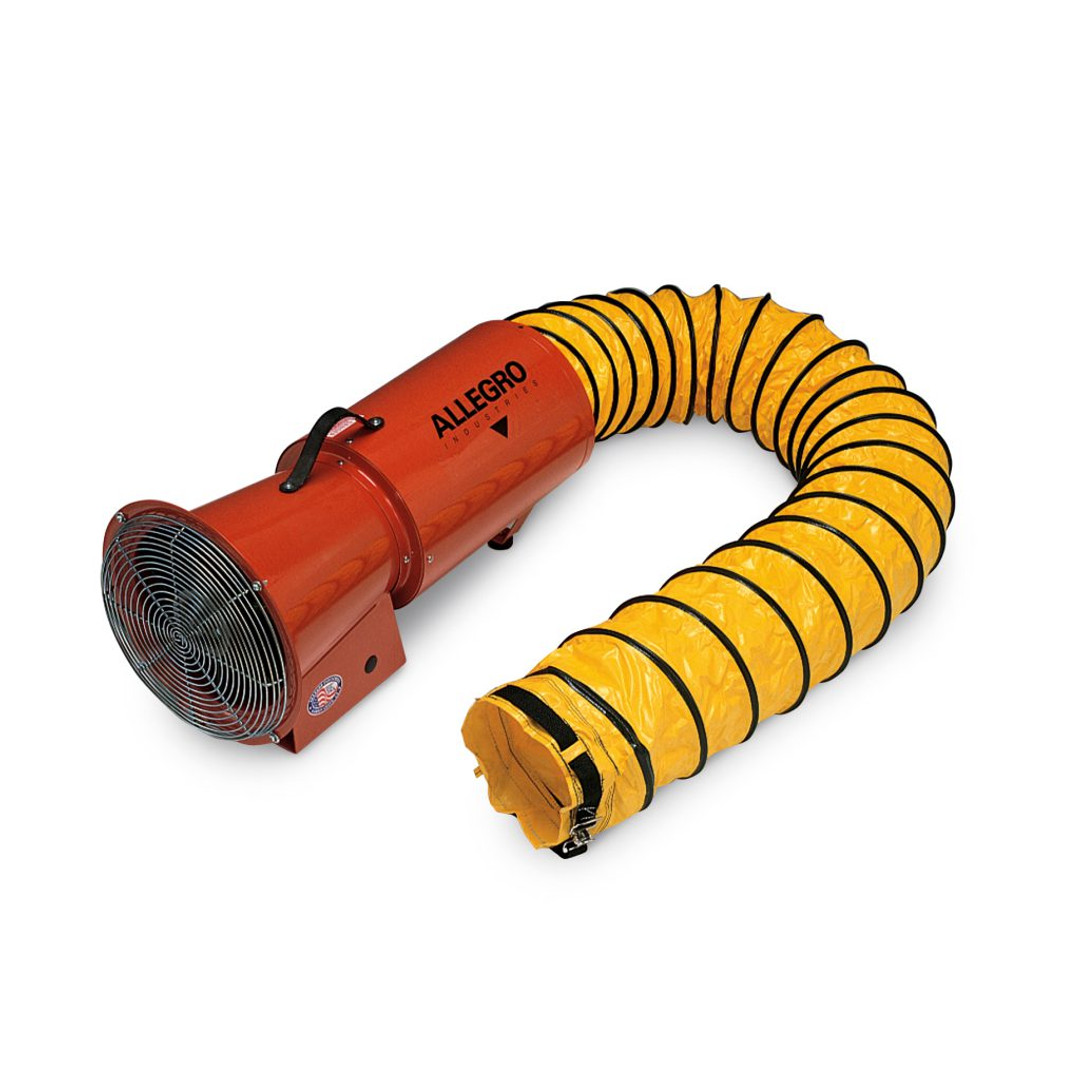

Allegro 8" Axial DC Metal Blower with Canister and 25’ Ducting | 9506-25

Smart compact design allows for easy use and storage without sacrificing airflow. Available as blower only or complete unit with 15’ (4.57 m) or 25’ (7.62 m) of ducting and storage canister. Allegro DC Blowers are designed to be used with standard car or truck batteries as the source of power. If it is necessary to leave the vehicle running to avoid draining the battery, it is important to ensure that the vehicle is parked downwind from the inlet of the blower to prevent any CO from entering the working area.

CONSTRUCTION:

• Epoxy powder coated in “safety orange”
• Flange on intake side
• 18-gauge cold rolled steel housing
• Welded motor mount construction
• Steel/chrome plated grill
• Carry handle made of 3-ply rubber belting
• Equipped with four rubber feet

MOTOR:

• HP: 1/4 HP, 12V DC
• RPM: 3800
• Current Draw: 22A
• Fuse: Inline 30A
• Cord: 15’ (4.57 m) SJTW, AWG 12/2 90C 300V neoprene medium duty
• Plug: Alligator clips

FAN:

• Glass reinforced polypropylene (PPG) six blade fan with aluminum hub
• Moving fan mounted 1 5/8” (4.12 cm) from grill for safety
• Grill gap: 5/16” (0.79 cm)

DUCTING: (Optional)

• Retractable, non-collapsible design
• Single ply, PVC coated, vinyl and polyester materials, temperature resistant up to 180° F (82.2° C)
• Yellow color with black weather-strip and integrated nylon straps
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs



DIMENSIONS:

Blower PN	Length	Width	Height	Weight
9506	14” (35.5 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	18 lbs. (8.1 kg)
9506-01	28” (71.1 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	31 lbs. (14 kg)
9506-25	36” (91.4 cm)	13 5/8” (34.6 cm)	15” (38.1 cm)	37 lbs. (16.7 kg)



FLOW RATES: (CFM calculated using 15’ (4.57 m) of 8” (20.3 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
1150 CFM (1953.86 m3/hr)	800 CFM (1359.2 m3/hr)	650 CFM (1104.3 m3/hr)
