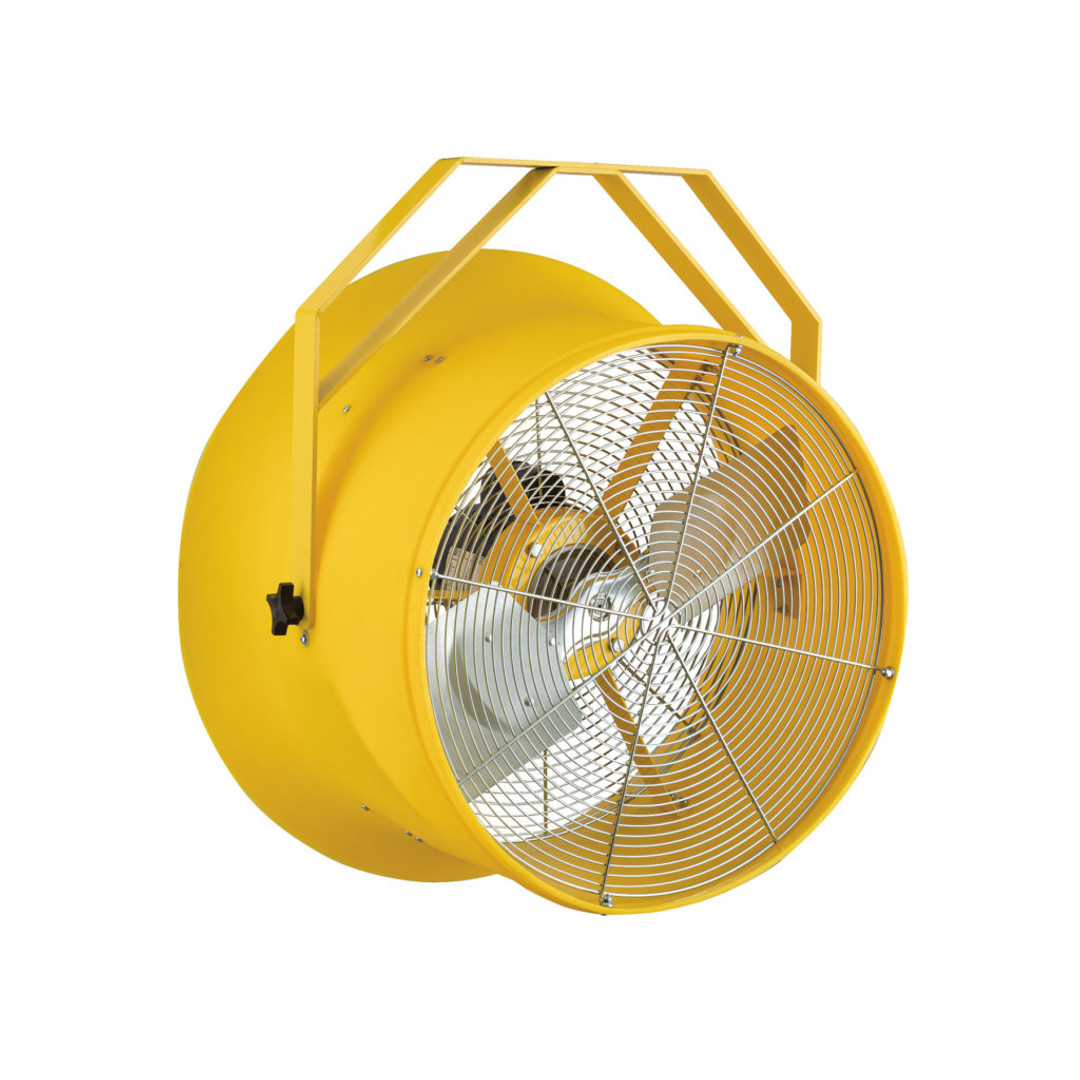

Allegro 22" High Output Fan | 9541-22

Our series of High Output Fans are versatile enough to withstand tough working conditions in industrial settings and warehouses; as well as offering a refreshing breeze in a variety of work settings. They are built for high velocity performance, superior distance of air throw, and durability. The heavy-duty, high-impact LLDPE housing is a vibrant yellow color and is ideal for indoor or outdoor use. Ships completely assembled and includes a powder-coated metal yoke bracket that easily mounts the fan to your desired location. Take advantage of its 360° turn radius and 130° tilt angle to push air where it's needed. Available with optional metal swing arm or wall mount brackets.

Recommended applications: agriculture, cannabis, dairy, poultry, stables, Manufacturing, warehouses, distribution centers, food processing, pulp & paper, recreation (golf courses), amusement parks, fire & EMS, and aviation.

CONSTRUCTION:

• Made from rugged, high-impact Linear Low-Density Polyethylene (LLDPE)
• Zinc-plated steel grill
• Yoke bracket and motor mount made from powder-coated steel
• Venturi style inlet helps create even column of non-disturbed air flow

MOTOR:

• HP: 1/2
• Certifications: UL Recognized, CSA Certified
• Voltage/Hz: 115V-230V AC, 60 Hz
• Max RPM: 1725
• Amps: 5
• dB: 65 @ 20’ / 73 @ 3’
• Cord: 9’ (2.7 m) 14 AWG SJTW
• Plug: NEMA 5-15 Molded-in

FAN BLADES:

• Engineered for maximum air velocity and smooth, quiet operation
• Made from corrosion-resistant aluminum
• 18” (PN 9541-18) features 3 blades, 22” (PN 9541-22) features 2 blades



DIMENSIONS AND FLOW RATES:

PN	Length	Width	Height	Weight	CFM
9541-18	16” (40.6 cm)	24.5” (62.2 cm)	16” (40.6 cm)	44 lbs. (19.9 kg)	4179
9541-22	16” (40.6 cm)	29” (73.6 cm)	16” (40.6 cm)	48 lbs. (21.7 kg)	5606
