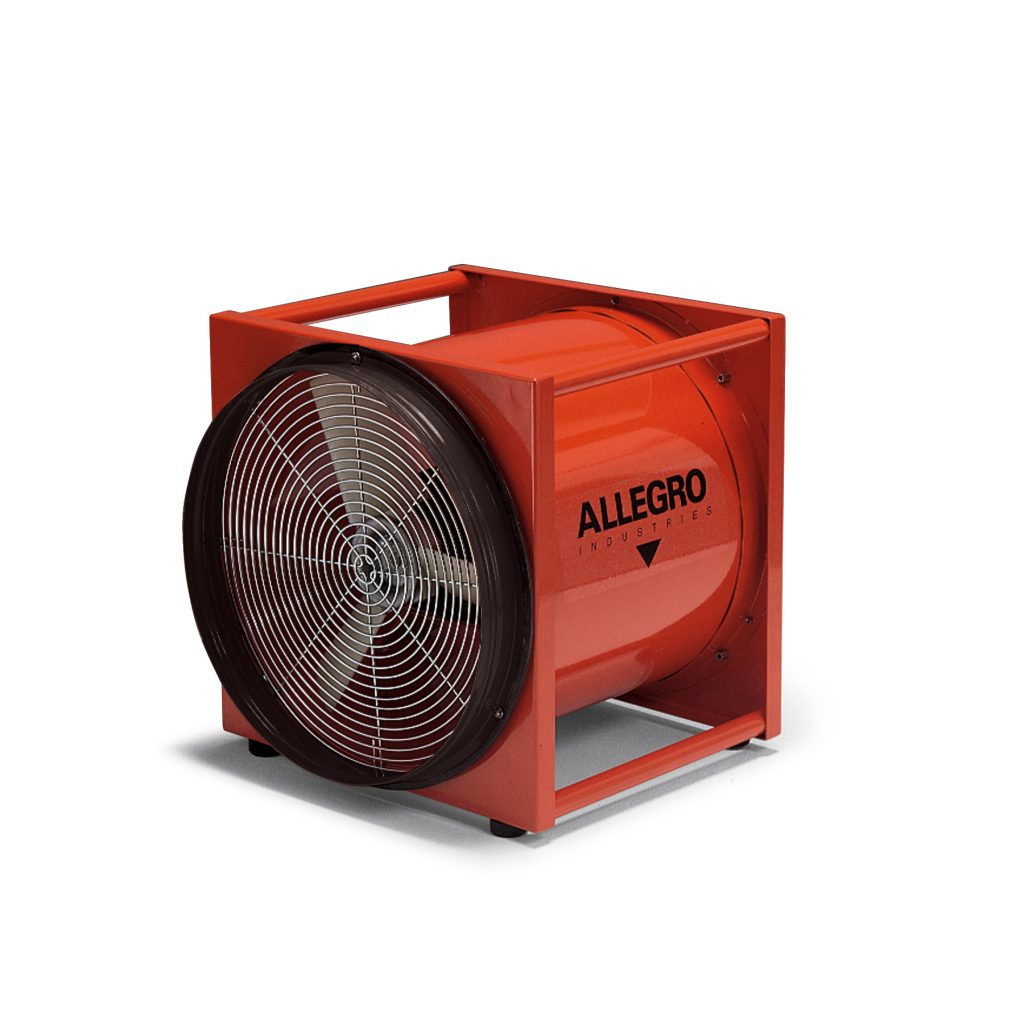

Allegro 16″ Axial AC Standard Metal Blower - 220V | 9515E

Designed for applications requiring a large amount of output, this standard model blower has a ½ HP motor with an efficient six-blade impeller in a rugged metal housing. Certified to CSA Standard C22.2 No.113.

CONSTRUCTION:

• Complete unit epoxy powder coated in “safety orange”
• Interchangeable flange for intake/exhaust side mounting
• 18-gauge cold rolled steel housing
• 10-gauge steel bolted motor base
• Integrated carrying handles on four sides
• Steel/chrome plated grill
• Equipped with four rubber feet
• Stackable design
• Use with Adaptor Reducer (PN 9600-50) - to be used with 8” (20.3 cm) ducting

MOTOR:

• HP: 1/2 HP, 220V AC, 50 Hz, Single Phase
• Certifications: UL Listed, CSA Certified
• Max RPM: 1425
• Current Draw: 3.7A
• Cord: 25’ (7.62 m) 12/3 AWG, SJTW 90C 300V medium duty
• Switch: NEMA 5-15 (Grounded three-prong)

FAN:

• Glass reinforced Polypropylene (PPG) six blade fan, with aluminum hub
• Moving fan mounted 1 5/8” (4.12 cm) from grill for safety, grill gap-5/16” (0.79 cm)
• Grill gap – 5/16” (0.79 cm)

DUCTING:

• Retractable, non-collapsible design
• Single-ply, PVC coated, vinyl and polyester materials, temp. resistant up to 180° F (82.2° C)
• Class 1 hard drawn spring steel wire helix that meets ASTM 227 specs

DIMENSIONS:

Length	Width	Height	Weight
14” (35.5 cm)	18” (45.7 cm)	18” (45.7 cm)	47 lbs. (21.3 kg)

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 16” (40.6 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
3400 CFM (5776.63 m3/hr)	2800 CFM (4757.23 m3/hr)	2300 CFM (3907.72 m3/hr)
