High output from a compact explosion-proof axial blower, designed for easy use and storage without sacrificing airflow. Available as blower only or complete unit with 15’ (4.57 m) or 25’ (7.62 m) of ducting and storage canister. Canister attaches to intake or output of blower for suction or ventilation. It is designed for hazardous locations.

CONSTRUCTION:

Polyethylene housing and canister assembly
Lightweight-, corrosion-, UV-, and chemical-resistant
Super quiet, in “safety orange” housing
Carry handle molded into blower and canister housing
Steel powder coated grill
NOTE: EX blowers require an explosion-proof socket (PN 9503-06)

MOTOR:

HP: 1/3 HP
Certifications: UL Listed, CSA Certified
Voltage/Hz: 220V AC, 50 Hz, Single Phase
RPM: 2750 (220V, 50 Hz)
Amps: 1.2A
Cord: 25’ (7.62 m), SJOOW 18/3 AWG

FAN:

PAGAS (Anti-static glass reinforced Polyamide) three-blade fan
Aluminum hub

STATICALLY CONDUCTIVE DUCTING: (included on 9548-15E and 9548-25E models)

Black single-ply lightweight vinyl/polyester, coated with neoprene 250° F (121.1° C) temperature-resistant
Non-collapsible retractable design, Class 1 hard drawn spring steel wire helix
Retractable, non-collapsible design, Single ply
Spring steel wire helix
WARNING: When using statically conductive ducting, the integrated grounding wire must be properly grounded to the blower chassis OR linked to any additional grounding wire or duct used (as shown). Refer to User Manual for detailed instructions.

HAZARDOUS LOCATION RATINGS:

Class: I	Class: II
Divisions: 1 & 2	Divisions: 1 & 2
Groups: C & D	Groups: F & G

BLOWER DIMENSIONS:

PN	Length	Width	Height	Weight
9548-E	13” (33.0 cm)	16” (40.6 cm)	17” (43.1 cm)	28 lbs. (12.7 kg)
9548-15E	27” (68.5 cm)	16” (40.6 cm)	17” (43.1 cm)	47 lbs. (21.3 kg)
9548-25E	27” (68.5 cm)	16” (40.6 cm)	17” (43.1 cm)	54 lbs. (24.5 kg)

FLOW RATES: (CFM calculated using 15’ (4.57 m) of 12” (30.4 cm) ducting)

Free Air	One 90° Bend	Two 90° Bends
1484 CFM (2521.31 m3/hr)	1174 CFM (1994.62 m3/hr)	1014 CFM (1722.78 m3/hr)

**Air flow determined at 60 Hz

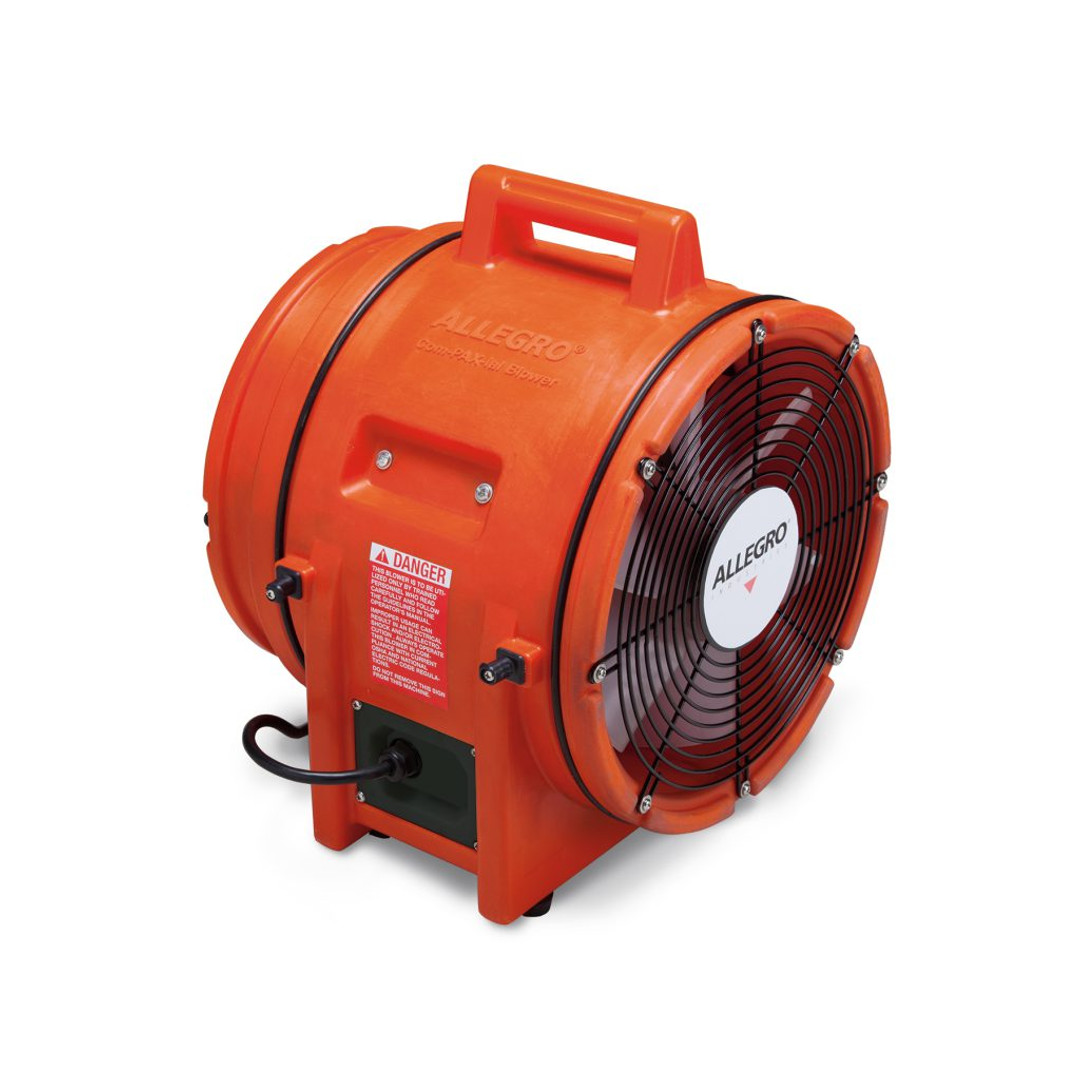

Allegro 12″ Axial Explosion-Proof (EX) Plastic Blower - 220V AC/50 Hz | 9548-E

Product Description
